Product Infromation
| Category |
|
|---|---|
| Type number | F4125D |
| Production Status | In production |
| Rating Ampere | 130A |
| General Tolerance | ±0.5mm |
| Scale | 1/1 |
| Ordering Form | Type No（See the type number in the following table） |
| PDF Filepath |

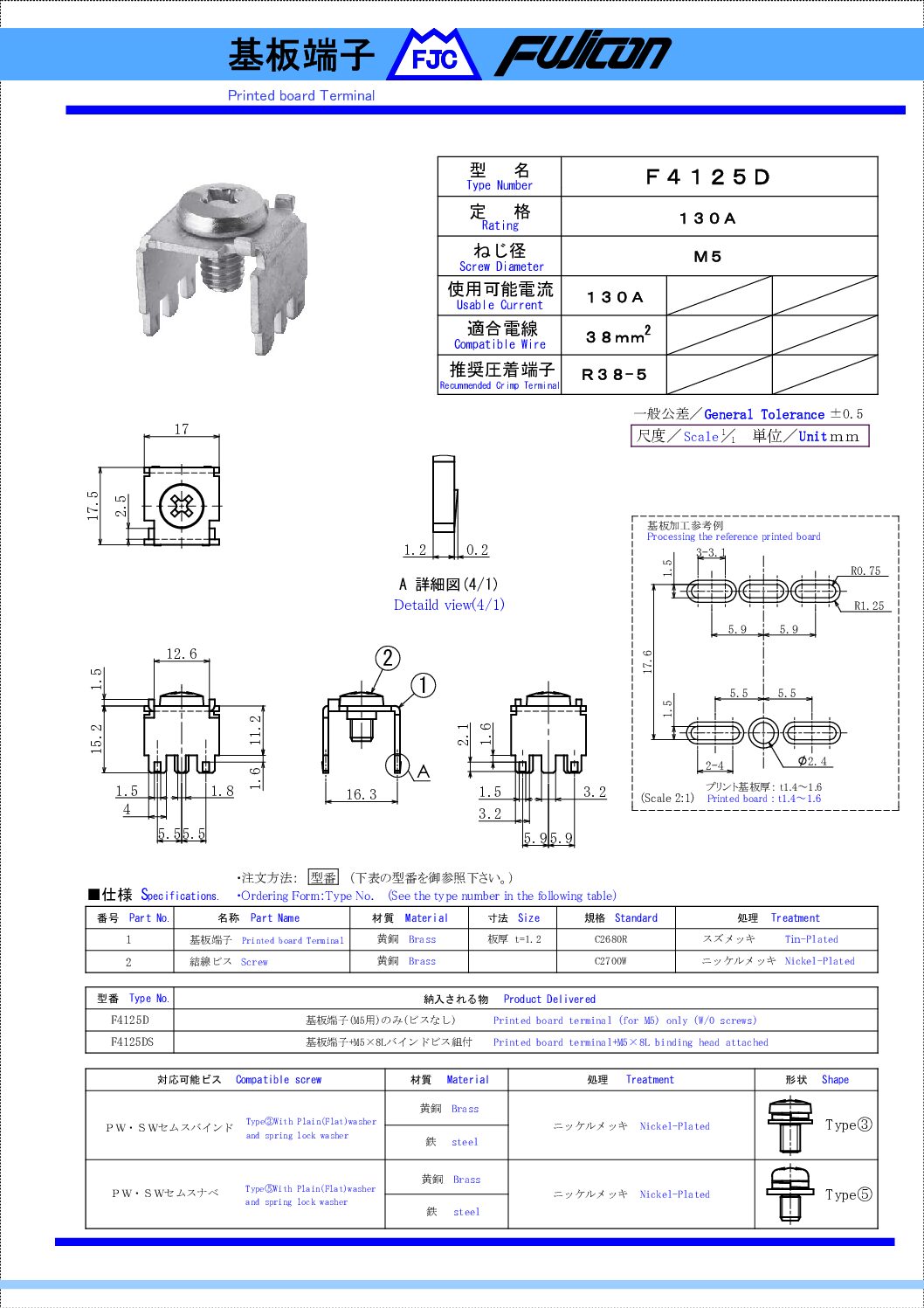

F4125D (264.9 KB) |
Specification
| Part No. | Part Name | Material | Size | Standard | Treatment |
|---|---|---|---|---|---|
| 1 | Printed board Terminal | Brass | t1.2 | C2680R | Tin-Plated |
| 2 | Screw | Brass | C2700W | Nickel-Plated |
| Type No | Product Delivered |
|---|---|
| Ｆ4125Ｄ | Printed board terminal（for M5）only（w/o screws） |
| Ｆ4125Ｄ | Printed board terminal＋M5x8L binding head attached |
